I’ve watched one of my favorite projects at F5, CIS (Container Ingress Services), mature over the years. When I joined F5 in late 2018, it watched the K8s API for the creation of Ingress resources and configured a VirtualServer on the BIG-IP with settings determined by the annotations on the Ingress resource. Then I watched over the years:

• it could send AS3 declarations to BIG-IP based on ConfigMap resources
• it supported Custom Resources (CRD’s) like VirtualServer and TransportServer
• the CRD schema grew and matured to support almost all available BIG-IP settings
• it integrated with IPAM and DNS
• it started supporting pool members using pods from multiple clusters

Remote CR discovery

What’s the latest improvement? Until now, even when operating in multi-cluster mode, CIS only discovered Custom Resources that were installed on the same cluster on which CIS was running. While pods from remote clusters could become pool members in BIG-IP, the VirtualServer and TransportServer resources had to be on the same cluster as CIS.

Why is this a problem?

Imagine you have 4 clusters and they all run different parts of the same overall application. You may have multiple clusters for the sake of:

• redundancy (in case of cluster failure)
• migration (you’re moving workloads between namespaces and clusters)
• cost reasons (some workloads on more costly clusters)
• etc

You may choose to install CIS on Cluster 1 and have CIS “watch” all 4 clusters for services to expose via BIG-IP. But before now, you had to install CR’s - VirtualServer and TransportServer - on Cluster 1 only. That means you have to control where your app teams deploy their resources.

Now, CIS will watch all 4 clusters for services AND Custom Resources. That’s the feature introduced here.

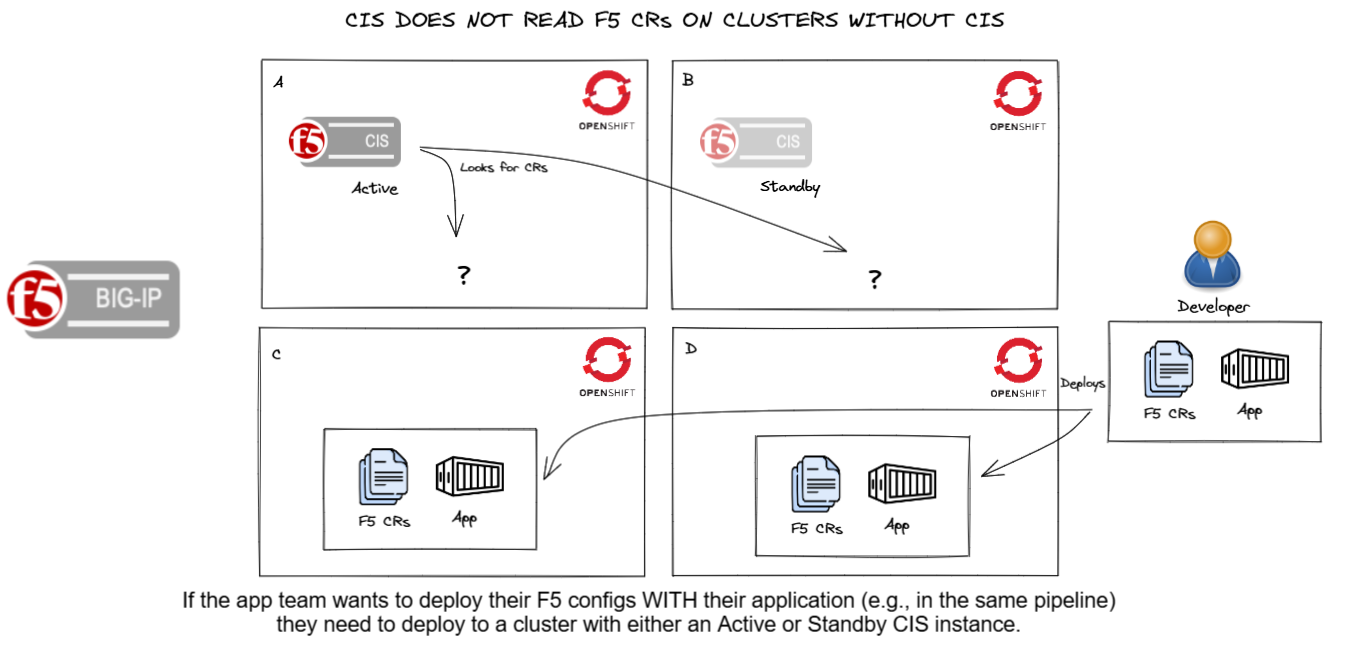

Before remote CR discovery

With multi-cluster, without remote CR discover

With remote CR discovery

With multi-cluster, with remote CR discovery

How to configure remote CR discovery

As you can see from the diagrams, the difference is quite simple, but the operational impacts are large. Enabling this is equally simple: a single line in the extended spec config file (see line 15 below)

kind: ConfigMap
apiVersion: v1
metadata:
  name: extended-spec-config
  namespace: kube-system
  labels:
    f5type: virtual-server
    as3: "true"
data:
  extendedSpec: |
    mode: default
    externalClustersConfig:
    - clusterName: cluster2
      secret: kube-system/kubeconfig2
      customResourceDiscovery: true #enables this new feature

For the sake of full repeatability, I am going to share my manifests here.
